Back to equipment

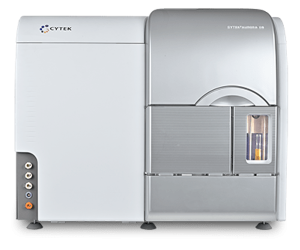

Cytek Aurora CS

Cytek Aurora CS - the latest cell sorting technology at TRI

Cytek Aurora CS - the latest cell sorting technology at TRI

The Cytek Aurora CS is a Spectral flow cytometer cell sorter. Its new technology allows the detection of the full emission spectrum, which enables it to distinguish similar emission fluorochromes (APC and AF 647). Small to high number colour panel can be analysed on the instrument.

The 5-laser configuration is identical to the CYTEK Aurora units configuration, allowing easy transfer of developed analysis panels to these instruments for sorting applications.

Features

  • 5 lasers (355nm, 405nm, 488nm, 561nm and 640nm)
  • 67 parameters instrument (FSC, SSC-B, SSC-V and 64 fluorescence channels)
  • Cuvette-based flow cell sorter allowing superior detection of some fluorophores compared to jet-in-air systems.
  • Nozzle size: 70, 85, 100 and 130 µm
  • Sample input tube type: 5 mL, 10 mL and 15 mL tubes to run samples
  • Sort up to 6-way in a number of different sort modes
  • Sorting rate: up to 22,000 cells per second
  • Sorting purity: up to 99%
  • Fluorescence data is measured over a dynamic 6 decades of data
  • Autofluorescence extraction option
  • Live unmixing during acquisition
  • SpectroFlo CS software for data acquisition

Need more help?

Cell sorters are operated by TRI Flow cytometry facility staff within the Flow Core.

The units are housed within Biological Safety Cabinets allowing for sorting of human cells, human cell lines and virally transduced cells.

Units are temperature control which allows for maintaining the environment of the sample and sorted material.

For more information on instruments, services and facility charges contact the Flow Cytometry team.
