BD FACSAria Fusion (SORP)
Streamline sorting and analysis
Streamline sorting and analysis

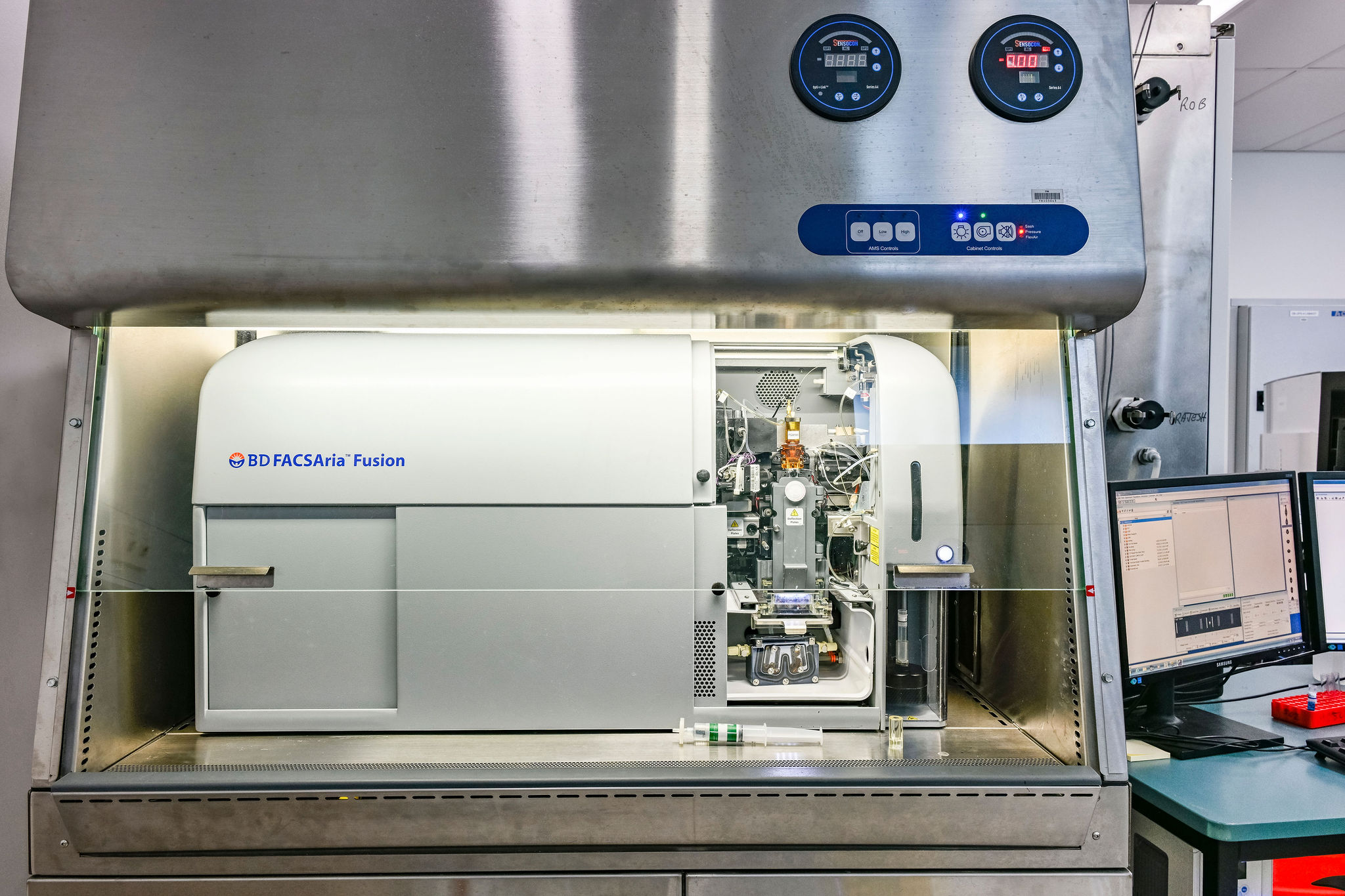

The BD FACSAria Fusion Flow Cytometer streamlines sorting and analysis with its fixed alignment flow cell, fixed optical architecture and software-controlled setup and operation.
TRI’s Flow Cytometry core facility houses two instruments, both use BD FACSDiva software which is compatible across many BD cell analysers and sorters. Both units are operated by TRI Flow cytometry facility staff (full service only).
- BD FACSAria Fusion SORP (Fusion #1 5-Laser Leo)
- BD FACSAria Fusion SORP (Fusion #2 5-Laser Len)
Features
- The 5-laser configuration is near identical to the BD LSRFortessa X-20 units configuration, allowing easy transfer of developed analysis panels to these instruments for sorting applications
- 5-laser (5 pinhole, 355nm, 405nm, 488nm, 561nm and 640nm)
- 20 parameters (FSC,SSC and 18 fluorescence channels)
- Cuvette-based flow cell sorter allowing superior detection of some fluorophores compared to jet-in-air systems
- 4-way cell sorting in a number of different sort modes
- Variety of collection tubes (5 mL polypropylene, 10 mL and 15 mL and 50 mL tubes) and 96- and 384- well plates
- Temperature control for maintaining environment of sample / sorted material
- Housed within Biological Safety Cabinets allowing for sorting of human cells, human cell lines and virally-transduced cells
Need more help?
Cell sorters are operated by TRI Flow cytometry facility staff within the Flow Core.
The units are housed within Biological Safety Cabinets allowing for sorting of human cells, human cell lines and virally transduced cells.
Units are temperature control which allows for maintaining the environment of the sample and sorted material.
For more information on instruments, services and facility charges contact the Flow Cytometry team.
